Type 25 Oil Pump Jacks

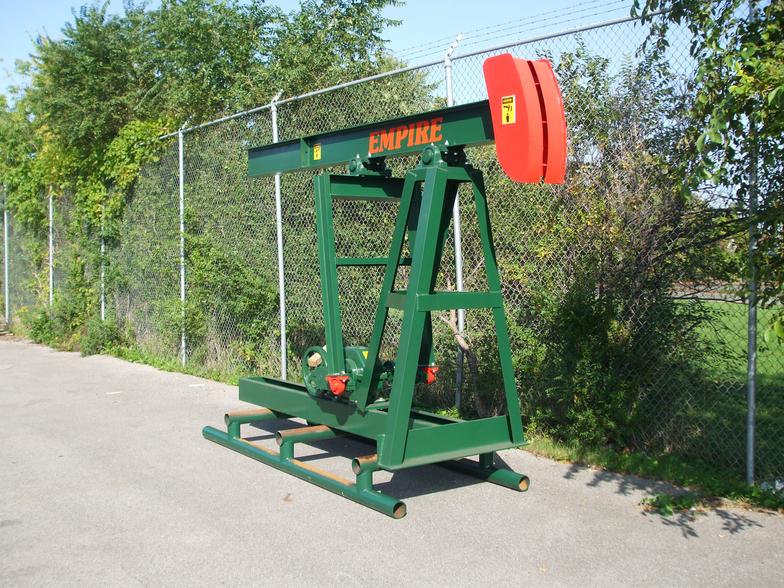

Type 25 Oil Pump Jack
Peak Torque Rating 25,000 in. lb.
Unit Structure Rating 4,300 lbs.
Can be used on oil wells down to 4,000 ft.
Adjustable stroke lengths 21", 25", 30", 36"
Structural steel is fabricated from type ASTM A-36 Steel
Walking Beam W10 @ 22 Beam
Pitman Arm C6 @ 10.5 Channel
Main T Base C8 @ 18.75 Channel
Horse Head side plates 1/4" Thick
Welders are all AWS Certified
Unit is completely primed then painted with High Performance Industrial Paint Gears and Pinions are case hardened
Standard items included with Type 25 Pump Jack: Brake assembly
Bridle assembly
Motor Mounts ​
Optional Items Supplied at additional cost: 130 lb. counter weights
Channel wide base
Guard cover for sheave pulley and belt
Motor slide base
Motor (Electric or Gas)
Belts
Shipping ​
